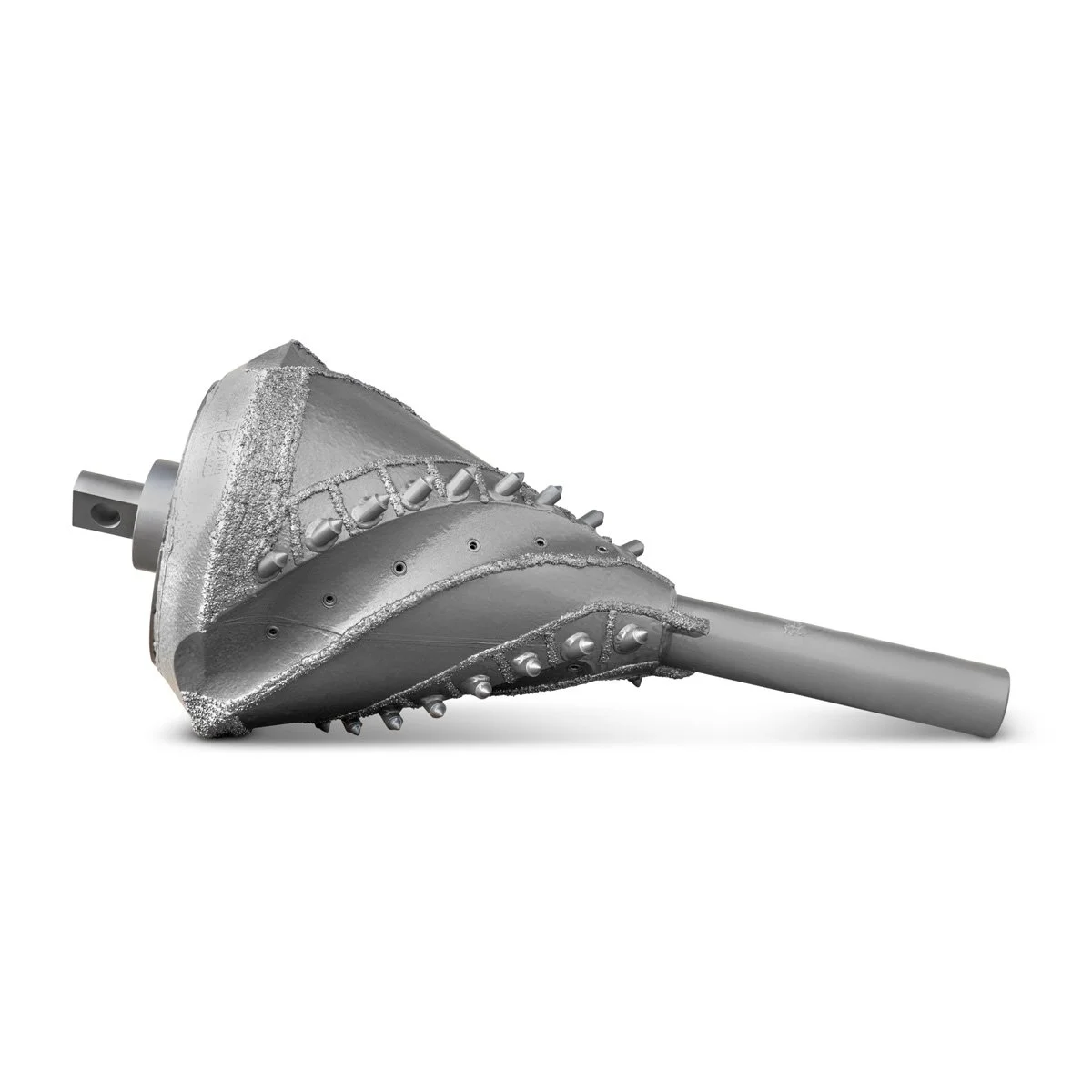

Fluted Reamers
SlimDril International supply H-Series fluted reamers, designed specifically for small to mid-sized HDD rigs. Featuring a tapered body, fluted profile, and tungsten carbide cutting teeth, these reamers deliver efficient cutting, compaction, and spoil displacement across a wide range of ground conditions.
H-Series reamers are available in multiple sizes, thread types, and connection options, with forward and rear-facing jets to maximise drilling fluid efficiency and cuttings removal.
H1F
Fluted Compaction Reamer
Key Features
- 30° tapered body for highly effective cutting and compaction
- Range of thread and back-end connection options
- Forward and rear-facing jets with replaceable nozzles
- Tungsten carbide rock-cutting teeth
- Fluted body for effective displacement of cuttings
- Standard sizes from 8″ (200 mm) to 20″ (500 mm) diameter
Recommended Use
Designed for general-purpose HDD applications, the H1F delivers high performance in:
- Medium density clays
- Boulder clay
- Aggregates
- Rocky salts
H2F
Fluted Compaction Reamer
Key Features
- 30° tapered body for aggressive cutting and compaction
- Range of thread and back-end connection options
- Forward and rear-facing jets with replaceable nozzles
- Tungsten carbide rock-cutting teeth
- Fluted body for effective spoil displacement
- Standard sizes from 8″ (200 mm) to 20″ (500 mm) diameter
Recommended Use
Designed for medium to hard ground conditions, the H2F performs exceptionally well in:
- Stiff clays
- Rocky soils
- Ground conditions requiring a more aggressive reaming action
Threaded Connection
API, or OEM (HDD rig) connection available. Pin (male) or box (female) threads as required.
Pulling Eye
For compatibility with swivels or to custom specifications.
Integral Swivel Socket
To receive integral swivel
(integral swivel not included).
Features & Benefits
Advanced Cutting & Compaction Design
30° tapered body combined with TC rock-cutting teeth and a fluted profile ensures effective cutting, compaction, and displacement of spoil.
Optimised for Small & Mid-Sized HDD Rigs
Designed to deliver excellent performance and stability on smaller rigs without compromising cutting efficiency.
Efficient Fluid Management
Forward and rear-facing jets with replaceable jet nozzles improve fluid flow and cleaning of the hole during reaming operations.
Flexible Connection Options
Available with a wide range of thread types, back-end connections, and pulling configurations to suit different rigs and applications.
